160 lm/W COB
RM0846MC-V1 · Ra≥90 · 6W/m · 42mm Cut · The ideal light source for linear fixtures and architectural cove lighting.
RM0846MC-V1 · Ra≥90 · 6W/m · 42mm Cut · The ideal light source for linear fixtures and architectural cove lighting.
Energy Efficiency
Traditional CRI90 COB strips consume 8–15W/m, inflating electricity bills on large-scale projects.
At just 6W/m, the RM0846MC-V1 delivers the same brightness as competitors drawing 10–15W. On a 500-meter hotel project, that's thousands saved annually — turning COB from a premium choice into the smart one.
Light Quality
High-efficiency LED strips usually sacrifice color rendering. Architects get stuck with visible LED dots.
432 LEDs per meter create a seamless ribbon of light with CRI ≥90. Fabrics look richer, stone textures come alive, and there are zero hot spots — even at close range. Efficiency and beauty, no longer a trade-off.
Installation Flexibility
Standard COB strips have long cut intervals (50–100mm), leading to wasted material and awkward fits.

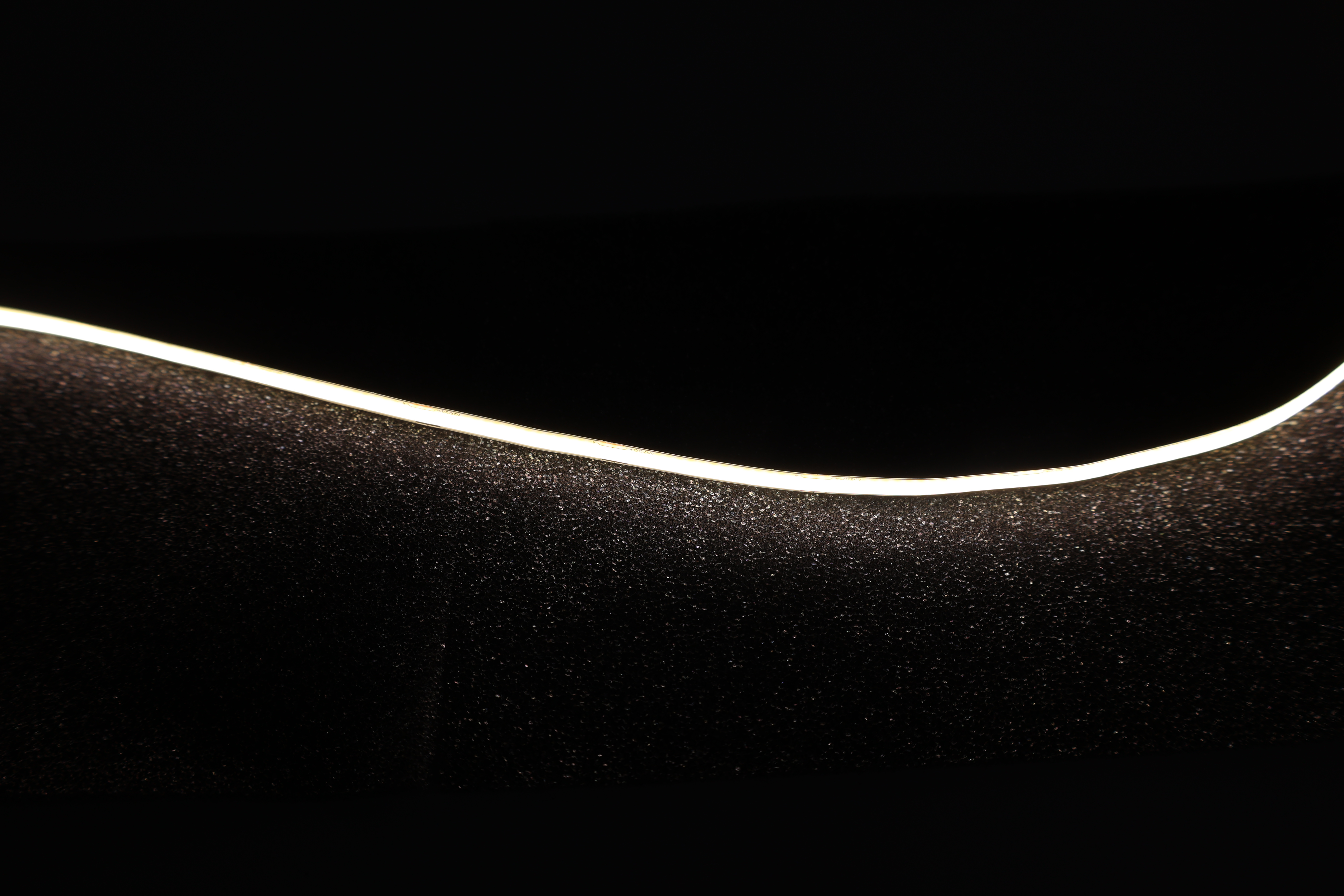

Every 18-LED group (42mm) is an independent cut unit. Fit curves, corners, and micro-niches with near-zero waste. The 8mm-wide flexible PCB tucks into the slimmest aluminum profiles.
Product Gallery
Core Features
Industry-leading luminous efficacy for CRI90 COB — 23–60% higher than competitors.
Same brightness at 40–60% less energy. Longer driver runs, cooler operation.
432 LEDs/m deliver silk-smooth, dot-free light with true-to-life color rendering.
18-LED cut units on 8mm flex PCB. Fits tight curves and slim profiles.
Technical Specifications
| Model | RM0846MC-V1 |
| Luminous Efficacy | 160 lm/W |
| Power Consumption | 6W/m |
| LED Density | 432 LEDs/m |
| CRI (Ra) | ≥90 |
| PCB Width | 8mm |
| Input Voltage | DC 24V |
| Cut Unit | 42mm (18 LEDs) |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| Beam Angle | 120° |
| IP Rating | IP20 (IP65/67 optional) |
| Lifespan | 50,000+ hours |
| Warranty | 3 Years |
| Luminous Flux | 960 lm/m |
| Max Run Length | 5m (single feed) / 10m (dual feed) |
| Dimming | PWM / 0-10V / DALI compatible |
| Operating Temp | -20°C ~ +45°C |
| LED Chip | Sanan / Cree (customizable) |
| Certifications | CE · RoHS · UL (pending) |
Installed inside aluminum profiles with frosted diffusers, this COB strip powers kilometers of recessed cove lighting in hotel corridors — 6W/m cuts operating costs while delivering uniform, dot-free warm glow.

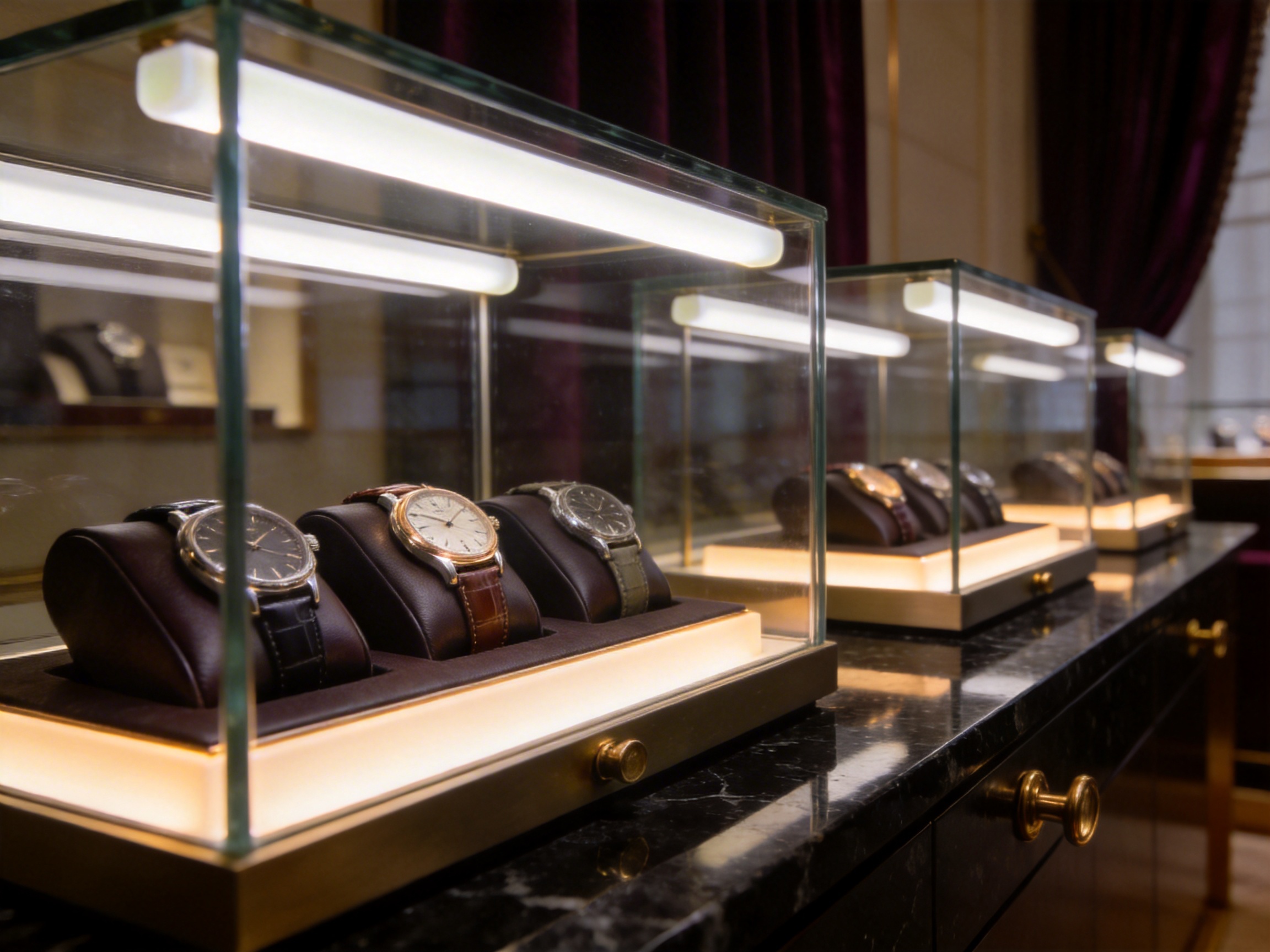

Housed in slim profiles with opal diffusers inside display cases, the strip delivers uniform CRI90+ illumination that reveals the true sparkle and color of jewelry and cosmetics.

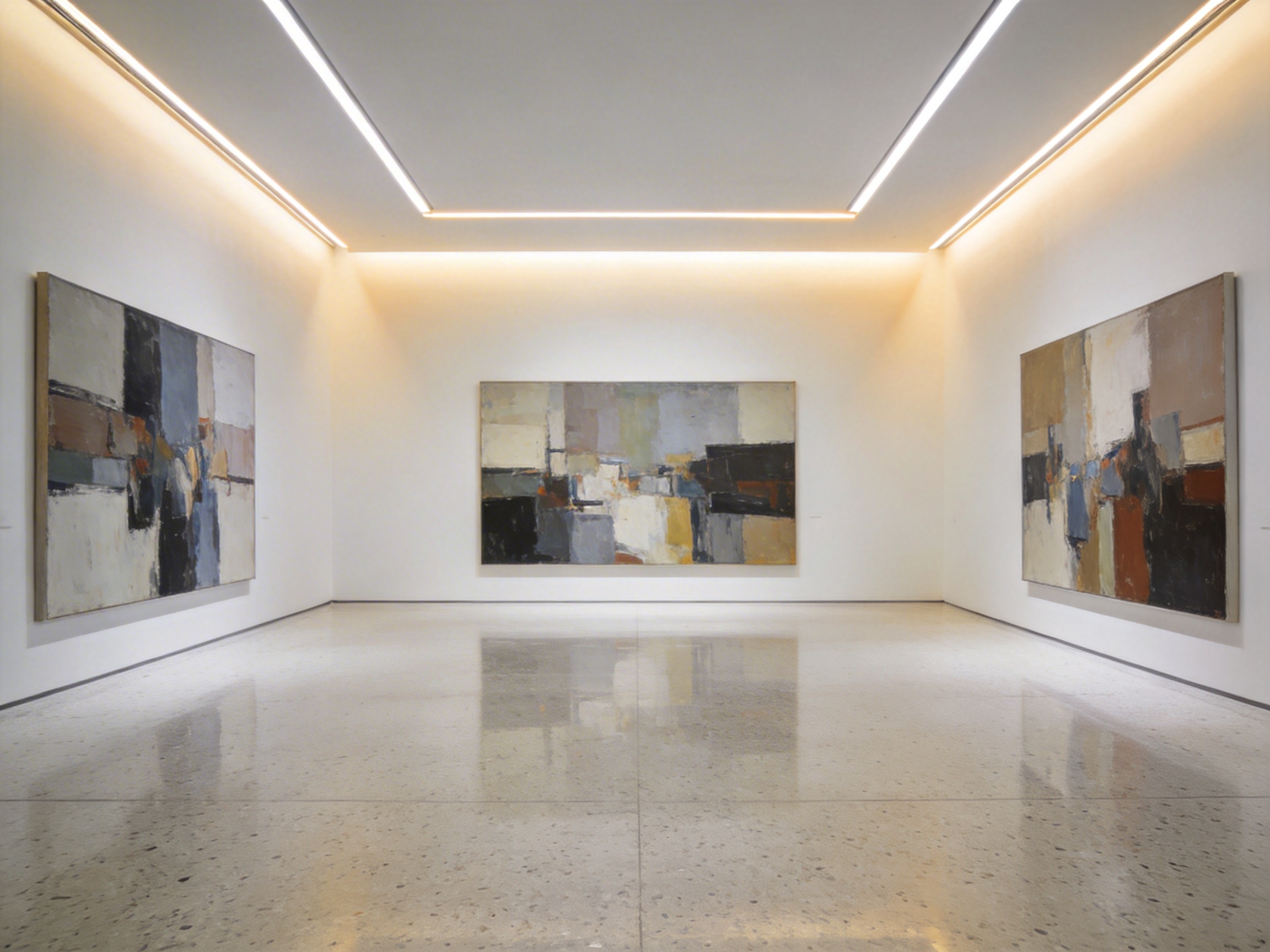

Recessed into ceiling slots behind diffuser lenses, the 6W/m strip minimizes heat near sensitive artworks while delivering museum-grade color-accurate wall-wash illumination.

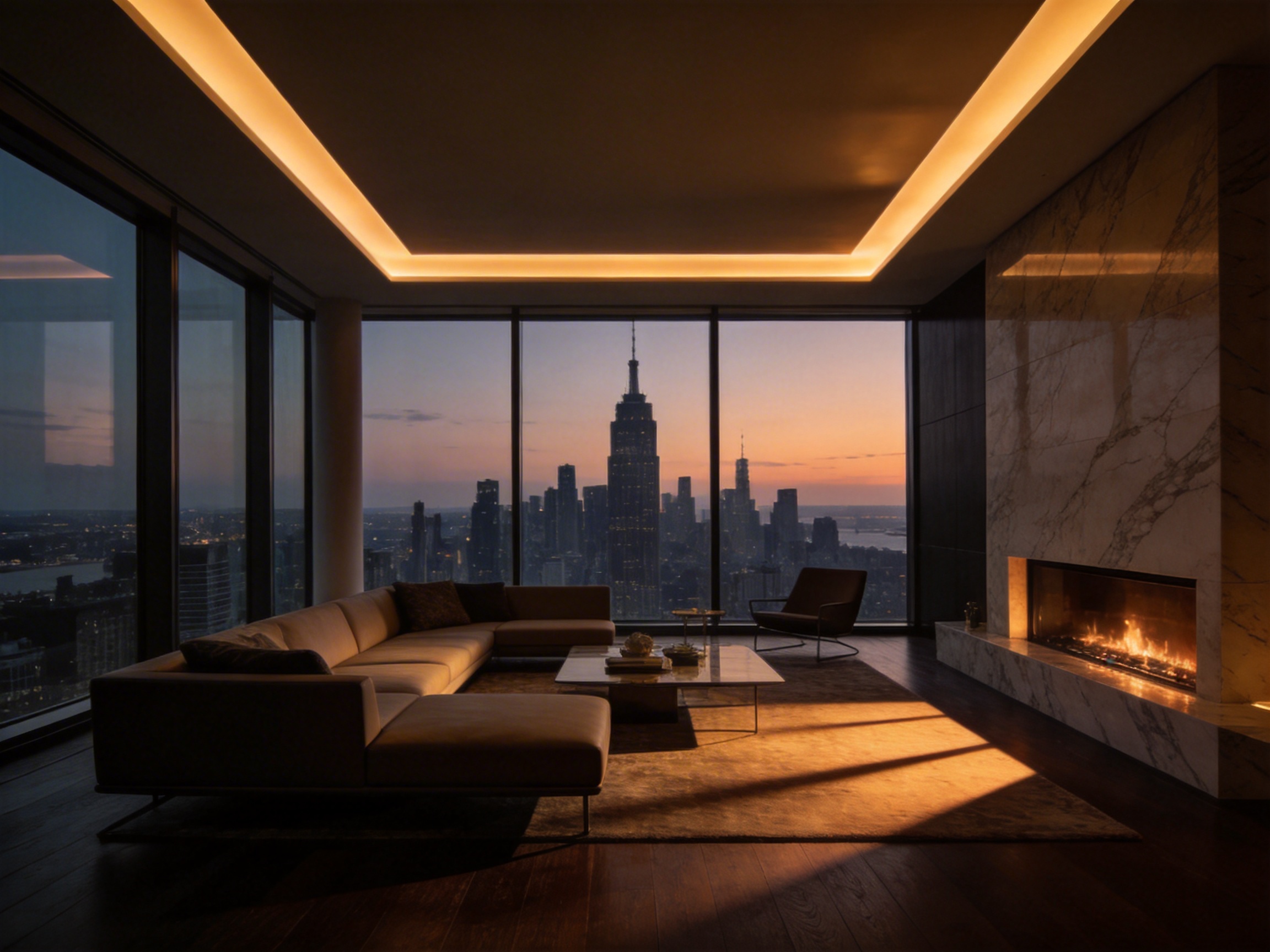

The 8mm strip fits inside the slimmest aluminum extrusions for architectural cove lighting — clean continuous lines of indirect warm light from minimal wattage.
